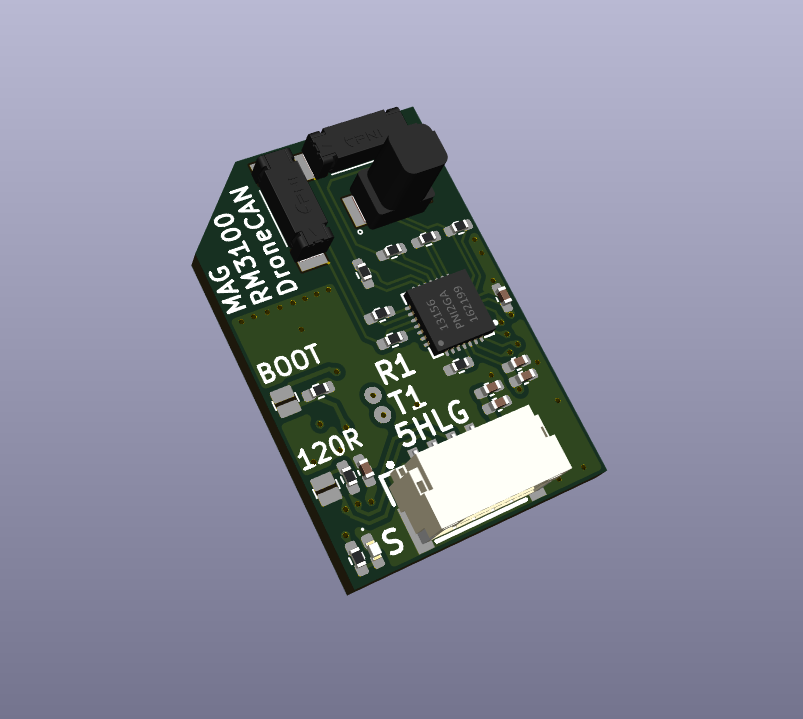

DroneCAN RM3100 Compass
Specification
| Parameter | Value at 200 cycles |
|---|---|
| Input voltage | 4.5 ~ 5.5V @5V pad |
| Current consumption | 10mA @5V |
| Connectivity | DroneCAN |
| Field range | -800 to +800 µT |
| Gain | 75 LSB/µT |
| Sensitivity | 13 nT |
| Noise | 15 nT |
| Max pulling rate(single axis) | 440 Hz |
| Temperature range | -40 to +85°C |
| Board dimensions | 25x17x10mm(L x W x H) |
| Connector | 4-pin JST-GH1.25 |
